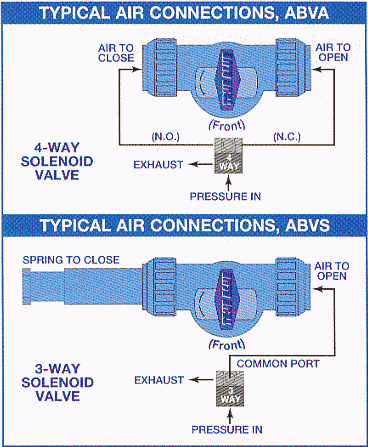

Click here for video. Click here for video Photo at right shows the air x air model ABVA in the foreground, and the air x spring ABVS in the background. The ABVS can be ordered as a completely assembled fail-safe actuator, or it can be ordered later as an "add-on" kit for an existing ABVA actuator. The basic actuator is the same; using the add-on kit creates an identical actuator to the factory assembled version. Another nice feature of the ABVS is that the spring and spring housing can be readily unscrewed and moved to the opposite side, changing the actuator from fail-safe/closed to fail-safe/open. In this photo, the position of the ABVS handle shows that this is a fail-safe/closed assembly.
Series ABVA and ABVS have direct override to the ball valveshaft. Series ABVS requires simple loosening of the springprior to manual override.
Actuator is constructed of corrosion resistant thermoplastics.Seals are Buna-N. For optional materials, please consult factory.
The ABVA and ABVS are designed for ½", ¾", and 1" True Blue Ball Valves. If you require an actuated ball valve in 1¼", 1½" or 2" sizes, please consult web page for Series ABRA.
| SPECIFICATIONS • ACTUATOR ONLY | ||||||||||
| Valve Size | Air x Air | Weight | Air x Air | Spring Kit | Weight | Air x Spring | ||||
| NPT or BSP | Part Number | Lbs. | Kg. | Air Pressure Required | Part Number | Lbs. | Kg. | Air Pressure Required | ||
| 1/2" | ABVA 1.2 | 0.9 | .41 | 20-50 PSI | 1,4-3,5 Bars | ABVS 1.2 | 0.3 | .14 | 50-80 PSI | 3,4-5,5 Bars |
| 3/4" | ABVA 1.6 | 1.8 | .82 | 20-50 PSI | 1,4-3,5 Bars | ABVS 1.6 | 0.6 | .27 | 50-80 PSI | 3,4-5,5 Bars |
| 1" | ABVA 1.6 | 1.8 | .82 | 20-50 PSI | 1,4-3,5 Bars | ABVS 1.6 | 0.6 | .27 | 50-80 PSI | 3,4-5,5 Bars |
| ABV Consumption Table | ||
|---|---|---|
| Actuator Size | Air Pressure @ Actuator | CFM* @ 1 cycle/hr/FT³/min. |
| 1.2 | 20PSI | .0000775 |
| 50PSI | .000145 | |
| 80PSI | .000212 | |
| 1.6 | 20PSI | .000192 |
| 50PSI | .000357 | |
| 80PSI | .000522 | |
| To obtain CFM required from compressor, multiply the chart CFM value times the number of required actuator cycles per hour. (1 cycle = 1 open, 1 close) | ||
| Example: For a 1.6 actuator using 50 PSI air pressure, with 12 cycles per hour required: Required CFM = .000357 x 12 = .004284 CFM. | ||
| *CFM is the cubic feet per minute of free air. | ||

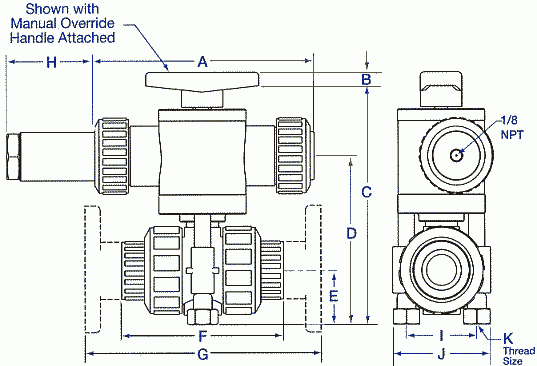

| Valve Size | A | B | C | D | E | F | G | H | I | J | K | |||||||||||
| IN | MM | IN. | MM | IN. | MM | IN | MM | IN. | MM | IN. | MM | IN | MM | IN. | MM | IN. | MM | IN | MM | Thread size | ||
| ½" | 5.75 | 146 | 0.6 | 15 | 5.6 | 142 | 3.9 | 99 | 1.25 | 32 | 4.25 | 108 | 6.5 | 165 | 2.8 | 71 | 1.75 | 44.4 | 2.6 | 66 | 1/4-20 | |
| ¾" | 7.3 | 185 | 0.6 | 15 | 7.1 | 180 | 5.00 | 127 | 1.50 | 38 | 4.60 | 117 | 7.1 | 180 | 2.8 | 71 | 2.25 | 57.0 | 3.25 | 83 | 1/4-20 | |
| 1" | 7.3 | 185 | 0.6 | 15 | 7.8 | 198 | 5.55 | 144 | 1.90 | 48 | 5.60 | 142 | 8.0 | 203 | 2.8 | 71 | 2.50 | 64.0 | 3.30 | 84 | 1/4-20 | |
A 3/4" ball valve in Geon® PVC with Viton® seals and BSP threaded connections will be used as an example. The part number, as shown below, would be ABVA075XVT-PV. If this used standard NPT threads, the X would be left out of the part number. If the valve is to be ordered with a "Fail-Safe" (spring return) actuator, change ABVA to ABVS in the part number prefix. All of the possible permutations are shown under the part number in the table below.
| ABVA 075 X V T - PV | ||||
|---|---|---|---|---|
| Valve Pipe Size | X = BSP or Metric | Seal Material | Connections | Body Material |
| 050 (½ in.); NPT/BSP | V-Viton | S-Socket Ends | PV- Geon® PVC | |
| 075 (¾ in.); NPT/BSP | EP- EPDM | T-Threaded Ends (NPT) | CP- Corzan® CPVC | |
| 100 (1 in.); NPT/BSP | F-Flanges | PP- Natural Polypro | ||
| 20; 20mm, socket only | PF- Kynar PVDF | |||
| 25; 25mm, socket only | ||||
| 32; 32mm, socket only |
Please click here. This is a .dwg file of ABVA100
Video of Air Actuator Installation.
Left Click to Play, Right Click to Download
Video of Fail-Safe spring conversion.
Left Click to Play, Right Click to Download
Catalog pages for Series ABV in .PDF format -- ideal for printing
Installation instructions for Series ABV in .PDF format -- ideal for printing
