Series LS

Limit Stops maintain desired flow capacity for air actuated ball valves

Operation:

A True Blue air actuated ball valve with a limit stop can maintain any desired set flow from virtually closed up to full capacity of the valve. Two types are available, one for air x air actuators (Actuators ABVA & ABRA) and one for air x spring "fail safe" actuators (ABVS & ABRS).

A simple stainless steel adjusting screw is used to limit the stroke of the air actuator position. Turning the adjusting screw clockwise limits the opening of the ball valve. The limits stops can also be used with limit switches for throttling.

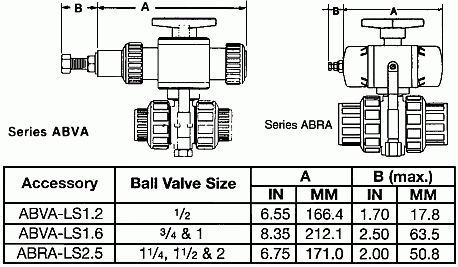

Limit Stops for Air x Air Actuators:

limits the position of the ball valve actuator dimensions and part numbers for air by air actuators

Please note that the part numbers shown are simply to identify size and actuator; for actual part numbers please consult factory.

Limit Stops for Air x Spring Actuators:

limits the position of the ball valve actuator dimensions and part numbers for air by air actuators

Please note that the part numbers shown are simply to identify size and actuator; for actual part numbers please consult factory.

Customization:

Whether it's a minor modification or a completely new valve, Plast-O-Matic engineers are known worldwide as the experts in thermoplastic valve design. Please call our Technical Group to discuss your needs at 973-256-3000. Minimum quantities and/or charges may apply.

Limit Stop CAD file:

.dwg format not yet available. We recommend either right-clicking on the appropriate dimensional drawing above, then doing a "save as," or you can download any of the ABV or ABR actuator CAD drawings and indicate the limit stop based on the dimensions shown above.
