Variable Area Flow Indicators
Series FIG Series FIGS with Switch

Features

  • Quantitative readout of variable area flow
  • " or " FNPT Connections
  • Choice of 0-1, 0-2, 0-5 or 0-10 GPM Gauge; accuracy is ±5% FS
  • Corrosion-resistant thermoplastic connections; PVC or CPVC
  • EPDM or FKM elastomers
  • No wetted metal parts
  • Made in USA

Plast-O-Matic flow gauges indicate liquid flow rates from low flows of 0-1 GPM, even when used at high line pressures. Flow gauge sensors can be supplied with switches or relays to initiate alarms, activate other equipment, or shut the system down. Two switches are used when high and low limits are desired. Maximum line pressure rating is 200 PSI.


Dimensions

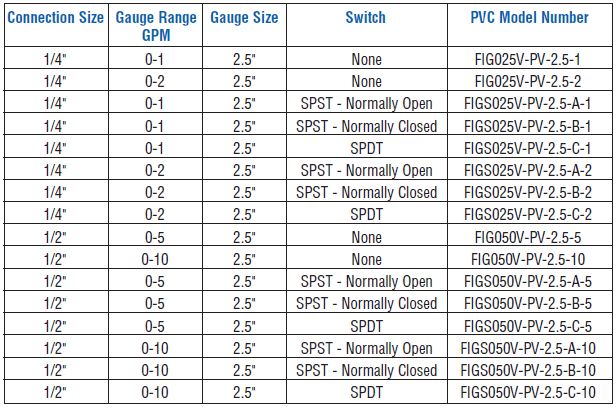

Part Numbers:


Notes -- Body and Seal Materials: All part numbers shown are PVC bodies with FKM (Viton) seals.
For CPVC bodies, change "-PV" to "-CP". For example, DPG025V-PV-15-2.5 becomes DPG025V-CP-15-2.5
For EPDM seals, change first "V" to "EP". For example, DPG025V-PV-15-2.5 becomes DPG025EP-PV-15-2.5

Notes -- Switch Specification: All switch types are determined by the final A/B/C in the part number, for example, DPG025V-PV-15-2.5-A and are defined as follows:
A: SPST Normally Open
B: SPST Normally Closed
C: SPDT
Switch rating is 125V AC, 0.7 amps.

Pressure/Temperature Ratings:

Maximum temperature rating is 140ºF for PVC, 180ºF for CPVC. Maximum line pressure rating for FIG/S is 200 PSI.
