Differential Pressure Indicators, Differential Pressure Gauges, and Variable Area Flow Indicators

Please click individual photos or links for complete specifications.

Differential Pressure Indicators

• Clear indication of filter overpressure
• Compact and reliable
• 1/8" FNPT Connections
• Choice of 0-15 PSID or 0-30 PSID Gauge; accuracy is ±5% FS
• Corrosion-resistant thermoplastic connections; PVC or CPVC
• EPDM or FKM elastomers
• No wetted metal parts.
• Made in USA

Series DPI Compact Differential Pressure Indicator

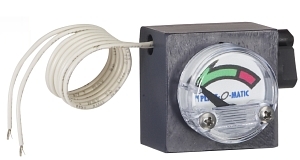

Series DPIS Compact Differential Pressure Indicator/Switch

ESPANOL

Differential Pressure Gauges

• Quantitative indication of pressure differential across a filter, points of use, etc.
• ¼" FNPT Connections
• Choice of 0-15 PSID or 0-30 PSID Gauge; accuracy is ±2% FS
• Corrosion-resistant thermoplastic connections; PVC or CPVC
• EPDM or FKM elastomers
• No wetted metal parts
• Made in USA

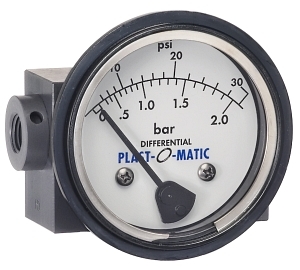

Series DPG Differential Pressure Gauge
Series DPGS Adjustable Differential Pressure Gauge/Switch

ESPANOL

Variable Area Flow Indicators

• Quantitative readout of variable area flow
• ¼" or ½" FNPT Connections
• Choice of 0-5 GPM or 0-10 GPM Gauge; accuracy is ±5% FS
• Corrosion-resistant thermoplastic connections; PVC or CPVC
• EPDM or FKM elastomers
• No wetted metal parts.
• Made in USA

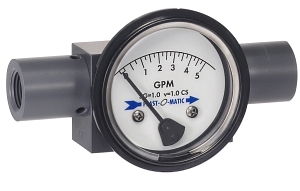

Series FIG Variable Area Flow Indicator Gauge
Series FIGS Variable Area Flow Indicator Gauge/Switch

ESPANOL

Differential Pressure Flow Meters

• Large, rugged flow nozzle for minimal pressure drop
• Highly visible 3.5" gauge
• 1/2" NPT connection with 0-10 GPM gauge
• 2" NPT connection with choice of 0-50, 0-100 or 0-200 GPM gauge
• Corrosion-resistant thermoplastic connections; PVC or CPVC
• EPDM or FKM elastomers
• Isolated magnetic movement/No wetted metal parts.
• Made in USA

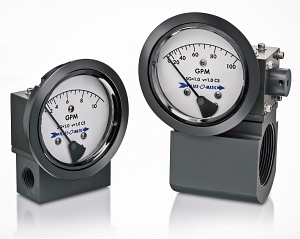

Series DPFM Differential Pressure Flow Meter
