3-way Electric Ball Valve-(PDF)

3-Way Electrically Actuated Ball Valves

Motorized Diverter or Sampling Valves -- Use as 2 inlets or 2 outlets

Please Note Series TEBV has been superseded by Series TEBVA, effective August 2009. If you are not redirected automatically, please follow this link

Features:

• Rugged plastic construction for corrosive atmospheres.
• Direct manual override with visual position indication.
• Flow direction indicators and Running lights.
• Thermally protected, heavy duty motor.
• IP-54/Nema 4X water and dust tight enclosure.
• Easily attached to MBV Ball Valves in a minute or less; no exotic modifications or special adapter kits required.
• Simple connections for remote operation and position indication.
• All three ports are true union for cost, installation time, and space savings.

Valve Design:

Valve is ordered with either a two-hole or three-hole ball. The two-hole ball switches from one inlet (or outlet) to the other, with a momentary no-flow condition. The three-hole ball ensures that flow is uninterrupted, with a momentary mixing of flow from the two ports. It is suggested that you specify the two-hole ball if you want to prevent the two streams from mixing, and specify the three-hole ball if you are concerned about dead-heading with a momentary no-flow condition. If you are unsure, you are invited to contact our Technical department for assistance at (973) 256-3000.

Materials of Construction:

Actuator enclosure is primarily PETRA, a rugged, corrosion-resistant thermoplastic. Other materials exposed to the atmosphere include Lexan, Stainless Steel, and Buna-nitrile. Valve materials are PVC or Corzan®. Valve seats and bearings are PTFE. Wetted seals are Viton® or EPDM.

Temperature and Pressure:

Pressure rating for both PVC and CPVC is 175 PSI at 75 degrees F (24 C). Maximum temperature for PVC is 140 degrees F (60 C); maximum temperature for CPVC is 180 degrees F (82 C).

Wiring Diagram:

If momentary signal is desired, standard timing relays can be used. Wiring diagram is available from our Technical Group; 973-256-3000.

Specifications:

Housing Material:   Petra (Terephthalate) ThermoplasticSeals:              Buna NAmbient Temp.:      0-50 degrees CRating:             IP-54, NEMA 4XVoltages:           24, 120, 220, 230, 240 - (50 or 60 Hz)Open/Close Time:    12 secondsValve Sizes         1/2"     3/4"      1"Cv Factors:         4.0      8.0       13.0Duty Cycle:         50% @ 70 degrees FValve Sizes         1-1/2"   2"Cv Factors:         38.0     39.0 Duty Cycle:         20% @ 70 degrees F

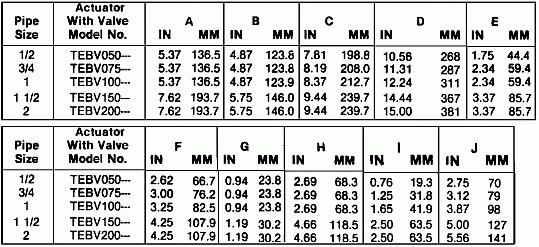

Dimensions:

CAD Drawing:

If you need a non-CAD drawing of Series TEBV, you may simply right-click the dimensional drawing above, and "save as" in your desired directory.

If you would like a full-fledged .dwg file, please read the following note, then click on the CADlink icon below.

NOTE THAT YOU WILL NEED TO DOWNLOAD TWO SEPARATE FILES TO GENERATE A DRAWING OF SERIES TEBV: First, download the TMBV file, which is the 3-way ball valve by itself, then download the EBV file, which is the actuator. Download EBV-65.DWG for 1/2" thru 1" valves. Download EBV-104.DWG for 1-1/2" and 2" valves. By combining the drawings, you will have TEBV.

Please Note Series TEBV is being phased out, and being replaced by Series TEBVA, effective August 2009.
