Series GYW Wafer Style Double Wall Sight Flow Indicators
Advantages of Series GYW Sight Glasses:- Double-wall construction featuring Pyrex® inner wall
- Large 360° viewing area.
- Full flow design (no corners to collect debris).
- Wide choice of select plastic materials to assure maximum chemical compatibility.
- Little or no maintenance required.
- No special hardware required for installation (completely assembled and pre-tested).
Design FeaturesTrue Blue® Series GYW flow indicators are designed to indicate the presence or clarity of high purity or corrosive liquid in a piping system. For use with ultrapure liquids or chemicals compatible with acrylic. O-ring seals are used on Series GYW indicators allowing them to seal at extremely low pressures as well as high pressures. GYW flow indicators are full ported, eliminating any possible flow resistance. Pipe sizes are 1-1/2" through 8" NPT (40 mm through 200 mm). An optional fluttering device is available. Materials of Construction Ends on Series "GYW" indicators are Geon® PVC, Corzan® CPVC, PTFE, Kynar® PVDF and Natural Polypropylene. Standard O-ring seals are Viton®. Standard fasteners are stainless steel. The transparent outer cylinder wall is high impact strength acrylic. The inner wall (wetted) is Pyrex (CAUTION: cannot be used with hydrofluoric acid or sodium hydroxide which will etch the glass). Optional fluttering devices are corrosion resistant thermoplastic. Pressure & Temperature ChartsSeries GYW with Geon® PVC Ends

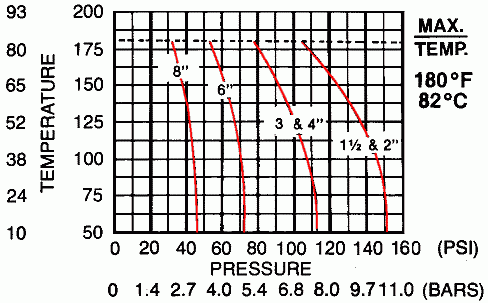

Series GYW with Polypropylene Ends
Series GYW with Kynar® PVDF Ends (1-1/2 - 8" shown)
Series GYW with PTFE Ends

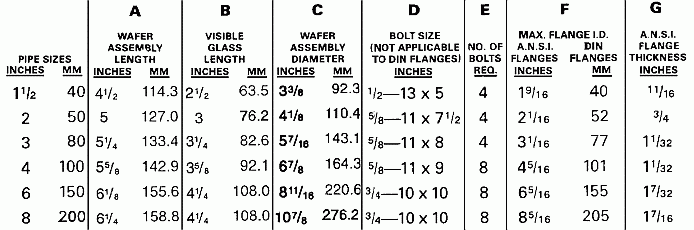

DimensionsOrdering Information| Pipe Size/Inches | Pipe Size/Millimeters | Part # w/Polypropylene Ends | 1-1/2"
2"
3"
4"
6"
8"
| 40
50
80
100
150
200
| GYW150V-PP
GYW200V-PP
GYW300V-PP
GYWX400V-PP
GYWX600V-PP
GYWX800V-PP
| Natural Polypropylene ends are shown above. For Geon PVC, change -PP to -PV, for example: GYW150V-PV. For Corzan CPVC, change -PP to -CP. For Kynar PVDF, change -PP to -PF. For PTFE, change -PP to -TF. If a fulttering device is required, add -FD to the appropriate model number. If DIN installations are required, please specify "For DIN Assembly" on the order. |
Operation & UseWhen properly installed, Plast-O-Matic flow indicators are automatic in operation and require little or no attention. These flow indicators will easily show the flow of turbulent liquids without assistance from fluttering devices. With clear or opaque liquids that are not turbulent and do not contain entrained air bubbles, the flow may be difficult to see. In this case a Plast-O-Matic fluttering device within the cylinder will indicate movement of the liquid. Installation ConsiderationsAll Plast-O-Matic flow indicators are easily installed in a piping system. The flow indicators may be installed either vertically or horizontally; however, the level indicators can only be installed vertically. The Series "GYW" (wafer design) flow indicators simply slip between two smooth faced companion flanges that may be either metal or plastic. Flange gaskets are not required as these flow indicators are supplied with two O-rings for just that purpose. Care should be taken so there is no misalignment of the flanges. Flange bolts should be tightened gradually alternating between opposite bolts to insure that the assembly pulls together evenly. The final 1/16" of tightening should be done with a torque wrench set between 10 and 15 foot pounds. This will seal the O-rings without placing uneven or excessive stresses on the assembly. Although these flow indicators have no specific inlet or outlet, care should be exercised when installing such units that have streamers for fluttering devices. They must be installed in such a manner that the fluid flow will force the streamers into the indicator's viewing area. Cylinder Wall InformationClearly, any flow or level indicator is only as good as the quality of its cylinder wall(s) since this is where the viewing takes place. The transparent cylinder walls used in PLAST-O-MATIC flow and level indicators are chosen for characteristics such as high corrosion resistance, high impact strength, and high light transmission. The inner transparent cylinder walls used in the Series "GYW" are Pyrex, a borosilicate glass of very low alkali content that resists attack from most bases and acids with the exception of hydrofluoric acid and sodium hydroxide. This is the same material used in manufacturing glass pipe that is extensively used in the chemical, food, beverage and pharmaceutical industries. The outer transparent cylinder walls are manufactured of a high impact strength acrylic. This material possesses uniform optical quality and has an extremely high light transmission factor, which is of great importance when the color or clarity of your liquid is a prime consideration. Acrylic cylinder walls are ultra-violet resistant. Fluttering DevicesAll PLAST-O-MATIC flow indicators can be used to indicate the presence of liquid flow when the liquid lends itself to turbulence or has entrained air bubbles that make viewing effortless. When the liquid is either clear or opaque a mechanical device is required to identify liquid movement. In such applications the use of PLAST-O-MATIC optional fluttering devices is a necessity. Optional devices that flutter in the presence of flow are available for Series GYW flow indicators. Modified & Custom Sight GlassesAs specialists in thermoplastic sight glass design for over 30 years, Plast-O-Matic's engineering department can modify Series GYW...or create an all-new product for any special application. Depending on complexity, minimum quantities and/or design fees may apply. Please contact our Technical Sales Group at (973) 256-3000 for details.
